Reading, measuring and viewing medical volumes

Working guide to voxelmetry: reading volumes, measuring structures in millimetres and litres, and turning a segmentation into a 3-D viewer. All output shown is from real runs.

00Quick check

The demo builds a synthetic torso, measures every structure and writes a viewer. No data required.

pip install -e ".[all]"
voxelmetry demo -o demo.html

wrote demo.html (902 KB)

structure   volume (mL)  max Ø (mm)  surface (cm²)  sphericity  parts
organ            486.05       141.3          331.0       0.903      1
lesion_1           2.24        16.1            7.8       1.000      1
lesion_2           0.59        10.4            2.8       1.000      1
lesion_3 *         0.35         8.4            1.8       1.000      1
bone              30.58       145.3           67.0       0.706      3

* spans under 5 voxels on its thinnest axis; shape figures are indicative only

Open demo.html in a browser. The footnote marks lesion_3 as too thin on its short axis for its shape figures to mean much; its volume and diameter are unaffected.

01Volumes carry their spacing

A volume is voxels plus the millimetres-per-voxel needed to interpret them. Held in separate variables, the first resize invalidates every measurement taken afterwards.

from voxelmetry.phantom import torso_phantom

image, labels = torso_phantom()
print(image)
print("voxel volume:", image.voxel_volume_mm3, "mm³")

smaller = image.resample(1.0)          # to 1 mm isotropic
print(smaller.shape, smaller.extent_mm)

Volume('torso_phantom', shape=(96, 128, 128), spacing=2.5x1.5x1.5 mm, extent=240x192x192 mm)
voxel volume: 5.625 mm³
(240, 192, 192) (240.0, 192.0, 192.0)

The grid changed from 96×128×128 to 240×192×192; the physical extent did not, and is still 240×192×192 mm. Axes are (z, y, x) throughout, matching how a DICOM series arrives and what marching cubes expects.

02Loading data

One function reads everything. Point it at a file or at a directory of DICOM slices.

import voxelmetry

vol = voxelmetry.load("scan.nii.gz")        # NIfTI, NRRD, MetaImage
ct  = voxelmetry.load("dicom_directory/")   # a DICOM series
voxelmetry.save(vol, "out.nrrd")            # format from the extension

Reading a real head-and-abdomen CT series from TCIA:

voxelmetry info liver_ct/

liver_ct
  grid (z, y, x)       89 x 512 x 512
  spacing (mm)         2.5 x 0.7812 x 0.7812
  field of view (mm)   222.5 x 400.0 x 400.0
  voxel volume (mm³)   1.5259
  isotropic            no
  dtype                int32
  intensity range      -2048 to 1604

03Measuring a structure

Every measurement is physical. Volumes in mm³ and mL, distances in mm, all derived from voxel counts times the true voxel volume.

organ = voxelmetry.measure_label(labels, 1, "organ")

print(f"{organ.volume_ml:.1f} mL")
print(f"max diameter {organ.max_diameter_mm:.1f} mm")
print(f"sphericity {organ.sphericity:.3f}, {organ.n_components} part(s)")

486.1 mL
max diameter 141.3 mm
sphericity 0.903, 1 part(s)

04Per-lesion measurement

Aggregates mislead when one label holds several separate things: three lesions 15 mm apart report a combined max diameter spanning all of them.

lesions = voxelmetry.measure_components(labels, 2, "lesion", min_volume_mm3=50)

for m in lesions:
    print(f"{m.name}: {m.volume_ml:.2f} mL, Ø {m.max_diameter_mm:.1f} mm")

print(voxelmetry.lesion_burden(lesions, reference_volume_ml=organ.volume_ml))

lesion_1: 2.24 mL, Ø 16.1 mm
lesion_2: 0.59 mL, Ø 10.4 mm
lesion_3: 0.35 mL, Ø 8.4 mm

{'n_lesions': 3, 'total_volume_ml': 3.19, 'largest_volume_ml': 2.24,
 'largest_diameter_mm': 16.1, 'sum_of_diameters_mm': 34.9,
 'burden_percent': 0.656}

sum_of_diameters_mm is what RECIST tracks between timepoints. min_volume_mm3 suppresses single-voxel speckle in predicted segmentations.

05The viewer

The viewer renders whatever integer labels it is given, from one structure to a thirty-structure whole-body segmentation. Nothing in it is organ-specific.

voxelmetry view segmentation.nii.gz -o scene.html \
    --labels "1=liver,2=tumour" --split 2 --min-volume 100

wrote scene.html  (12 structures, 65,532 triangles, 1,569 KB)

structure    volume (mL)  max Ø (mm)  surface (cm²)  sphericity  parts
liver            1359.65       244.2          940.0       0.631      2
tumour_1 *          2.68        20.2            9.8       0.952      1
tumour_2 *          0.89        13.3            4.0       1.000      1
...

Or from Python, with more control:

from voxelmetry.viewer import scene_from_labelmap, write

scene = scene_from_labelmap(
    labels,
    names={1: "liver", 2: "tumour"},
    split_labels=(2,),            # one mesh and one row per lesion
    max_faces_per_structure=40_000,
)
write(scene, "scene.html")

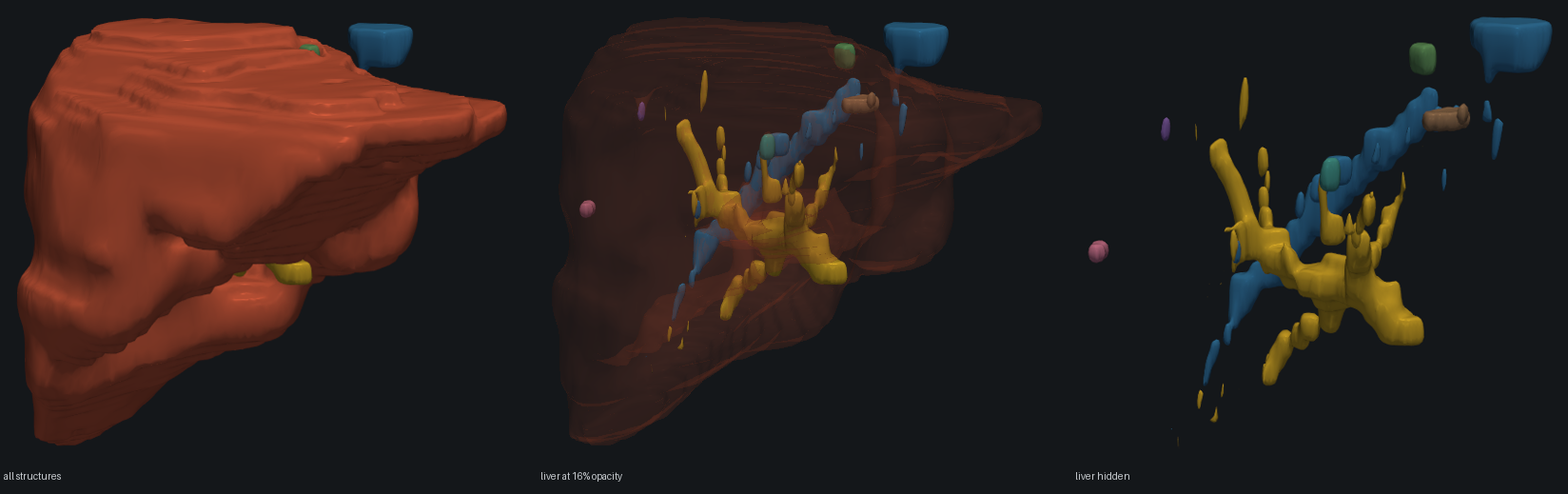

The disconnected vessel stubs are not a rendering fault; see §09.

06Preprocessing CT

Preprocessing is declarative, so a run can be recorded next to its output.

from voxelmetry.preprocess import PreprocessConfig, run

config = PreprocessConfig(window="abdomen", isotropic_mm=1.0, denoise_mm=0.0)
print(config.describe())
prepped = run(ct, config)

resample to 1.0 mm isotropic; body mask with 8.0 mm closing; abdomen window

Order matters and is fixed: resample first so later millimetre kernels act on a known grid, strip the table before windowing so the body mask sees true Hounsfield units, and window last because it destroys the HU scale. Named windows: abdomen, liver, lung, bone, brain, mediastinum.

07Non-CT data

Hounsfield units are calibrated, with air near −1000 and soft tissue near 0. MR, ultrasound and already-normalised data share none of that scale, so the relevant functions check first.

from voxelmetry.preprocess import is_hounsfield, apply_window

mr = voxelmetry.load("liver_mr/")
print(is_hounsfield(mr), mr.array.min(), mr.array.max())

apply_window(mr, "abdomen")          # raises
apply_window(mr, "percentile")       # correct for MR

False 0 831

ValueError: 'liver_mr' does not look like Hounsfield units (range 0 to 831), so
the 'abdomen' window would clip away most of its range. Use window="percentile"
for MR or other uncalibrated data, or pass an explicit (level, width).

08A whole cohort at once

examples/cohort_report.py measures every case in a dataset in parallel and reports what disagrees with the rest. Records stream to JSONL and the run resumes from whatever is already there, so an interrupted scan over 131 large volumes keeps its work.

python examples/cohort_report.py /data/Task03_Liver \
    --organ 1 --lesion 2 --min-lesion-mm3 100 \
    --workers 20 --out outputs/liver_cohort.jsonl

slice thickness (mm)  0.70 to 5.00   median 1.00
in-plane spacing (mm) 0.557 to 1.000  median 0.768
anisotropy (z / x)    1.2x median, up to 9.0x

organ volume (mL)     542 to 3195   median 1592   IQR 1380-1850
organ components      1 to 1777   93 case(s) not a single connected region
  stray volume (mm3)  0.0 to 4573.0   median 8.8   worst 0.360% of its organ

cases with lesions    117 of 131
lesions per case      1 to 62   median 3   total 753
lesion burden (%)     0.01 to 45.8   median 0.97
largest lesion Ø (mm) 10 to 241   median 40

Slice thickness spans 7× inside a single dataset. Any pipeline with kernels tuned in voxels behaves differently across these cases without saying so.

09Traps

Each was found running on real data and is covered by a test.

Component counts are a connectivity artifact

One liver label reports 395 components at face-adjacency and 27 at 26-adjacency. 232 of those are single voxels touching the main body only at a corner, for 0.04% of the volume. Read largest_component_fraction, or the stray volume derived from it, not the count.

Anisotropy fragments tubular structures

In the picture above the hepatic vein reports 150 components, largest holding 46%. That is the acquisition, not the annotation: at 0.887 mm in-plane against 5 mm between slices, a 3 mm vessel is sampled as isolated cross-sections.

Shape descriptors need about five voxels

Below roughly five voxels across the thinnest axis, surface area and sphericity are dominated by sampling artifacts; volume and diameter stay usable. Those rows carry resolution_limited and are marked with an asterisk.

Marching cubes on a binary mask overestimates area by 9%

A hard 0/1 mask traces a staircase. A 0.8-voxel Gaussian pre-smooth holds the error under 1% across the radii tested, but the same blur erases structures one voxel thick, so the isosurface falls back to an unsmoothed pass rather than returning zero. At 5 mm slice spacing a single-slice lesion is routine.

Flattening an overlapping DICOM SEG destroys segments

DICOM SEG permits overlap; an integer label map cannot represent it.

flattened naively   595 mL   in 767 fragments     ← wrong
dicom_seg_masks()  2417 mL   in 1 part            ← correct

A real study carried both Liver and Liver Remnant over largely the same voxels. Overlap now raises a warning naming what each segment lost, priority= chooses which wins, and dicom_seg_masks() keeps them all.

10Validation

The phantom generator emits shapes with closed-form geometry, and the tests assert against that arithmetic rather than against the code's own output.

The last row is why smoothing is Taubin and not Laplacian. Laplacian contracts a closed surface slightly on every iteration, so volume measured off a smoothed mesh drifts downward.

pytest              # 164 tests, incl. 39 headless checks on the generated viewer
ruff check src tests examples

11Command reference

Useful flags: --labels "1=liver,2=tumour" names structures; --split 2 breaks a label into components; --min-volume drops speckle; --max-faces sets the triangle budget per structure.
